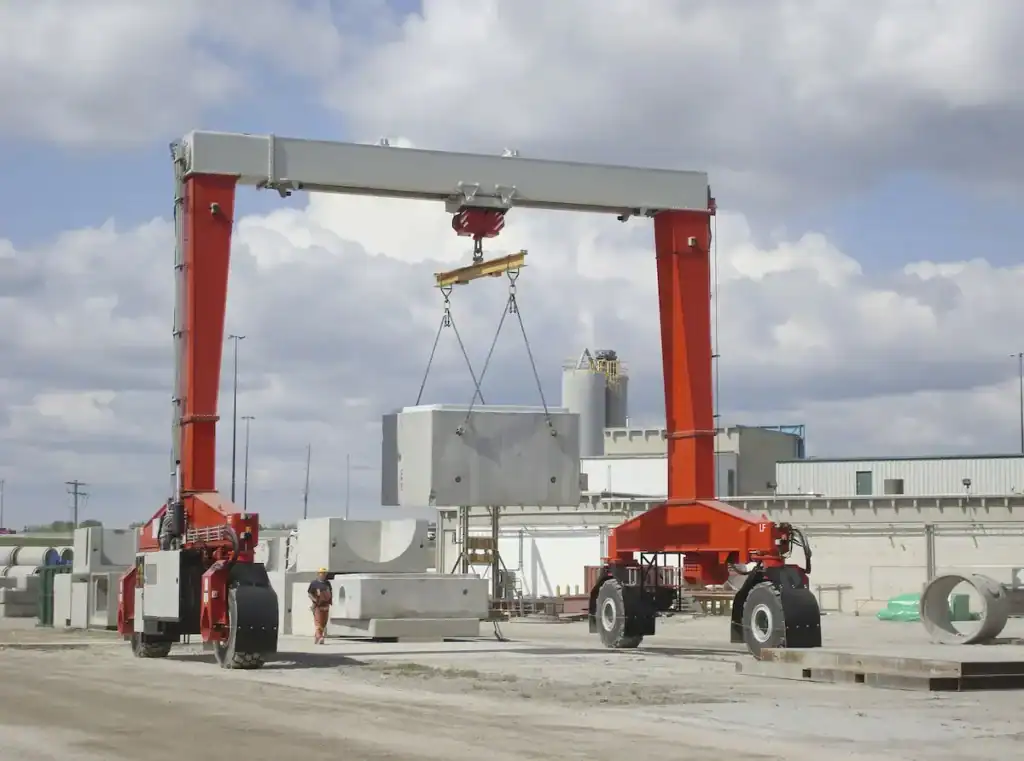

HSBRIDGE 50t Straddle Carrier Dubai Precast Beam Handling Case Study

Project Background and Client Introduction

In the Middle East, highway and urban rail construction is growing fast. Large precast component flow directly decides project schedule and total cost. Middle East Precast Solutions LLC is in Dubai, UAE. It is a leading local infrastructure supporting enterprise. And undertakes precast production and delivery for several Dubai national transport hubs. It also serves elevated bridge projects. In its core precast beam plant, it produces and moves many 50t precast box girders daily. It also moves T-beams. As Dubai project scale grows, traditional tire crane and flatbed combinations show low transfer efficiency. They occupy much yard space. Multi-machine coordination also raises safety risks. To upgrade intelligent and intensive material handling, the company introduced the ХСБРИДЖ 50t straddle carrier. It built an efficient and flexible precast beam handling system.

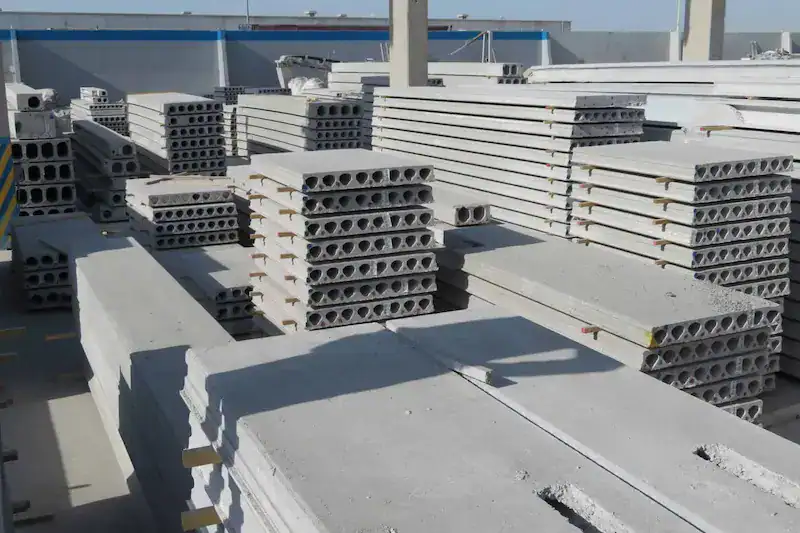

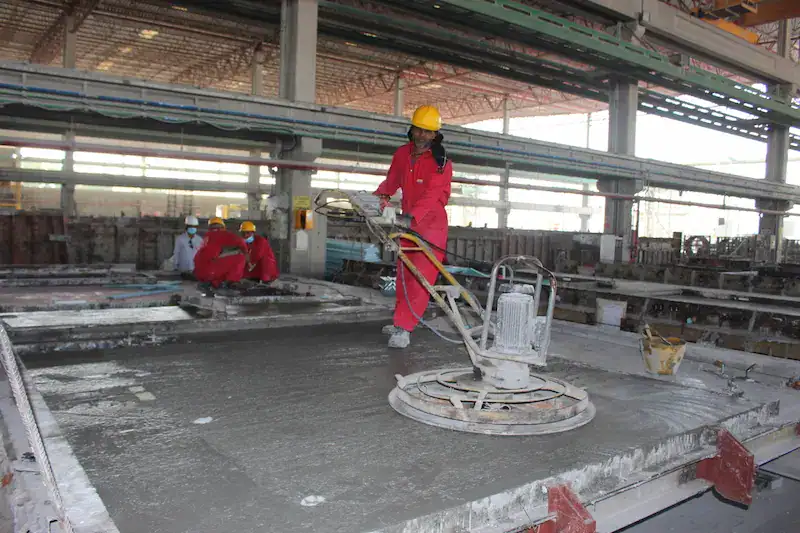

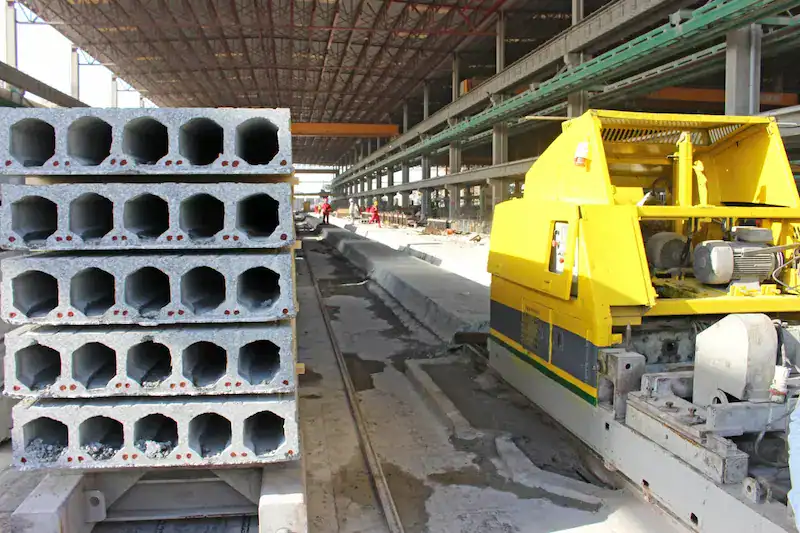

On-site Challenges and Business Pain Points

• Limited yard space utilization: Traditional gantry crane rails are limited by fixed spans. They cannot flexibly adjust yard layout. This leaves much edge space idle in the Dubai beam plant.
• Complicated heavy-load handling process: A single precast beam weighs about 50t. Traditional mode needs a gantry crane and heavy flatbed for secondary transfer. There are many intermediate steps and long work cycles.
• High adaptability to Dubai extreme climate: Dubai summers are hot with very strong sunlight. They also have year-round sand and high-temperature dust. This sets high standards for hydraulic cooling, electrical protection, and tire wear resistance.

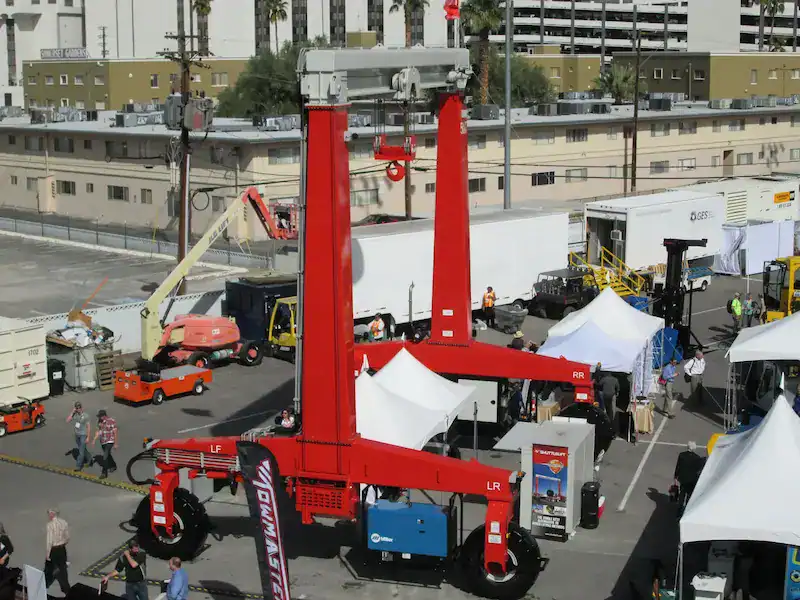

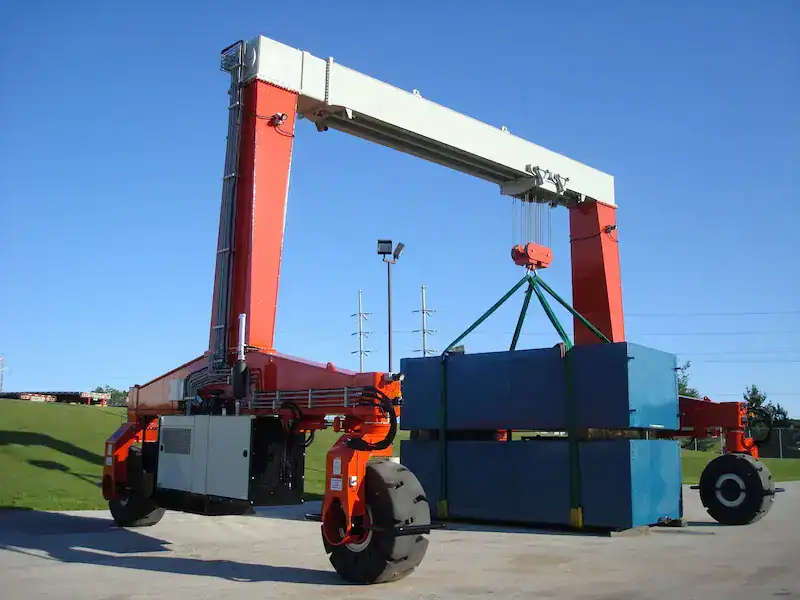

ХСБРИДЖ 50t straddle carrier Solution

For Dubai customers, the climate is harsh and efficiency faces bottlenecks. HSBRIDGE technical team customized a full 50t straddle carrier handling solution.

• Multi-mode precise steering: The equipment has an all-wheel independent electro-hydraulic steering system. It supports straight, diagonal, transverse, and 360° pivot turning in place. It greatly improves passage and U-turn ability in narrow yards.
• Heavy-load stable control technology: It uses a large-tonnage flexible spreader and electronic anti-sway control system. This effectively suppresses inertial sway of precast beams during long-distance transport. It ensures stable operation of large components.
• Weather resistance and heat dissipation enhancement design: The power system has a high-power air-cooled radiator and multi-stage high-efficiency air filter. It perfectly adapts to Dubai desert edge high-temperature and dusty harsh working environment.

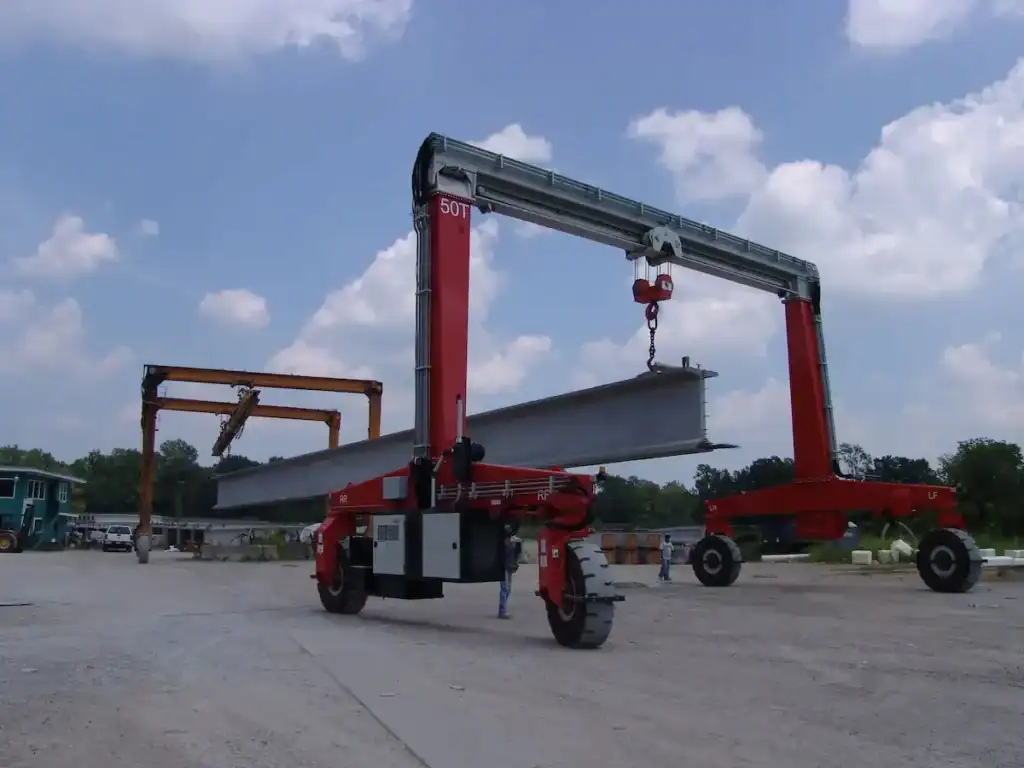

50t straddle carrier Technical Parameters Table

Application Results and Summary

In summary, the HSBRIDGE 50-ton straddle carrier operated successfully at a Dubai precast beam yard. It solved low heavy-load transport efficiency and large yard occupation. Customer gains included 40% higher efficiency, 30% more yard space, and 25% lower total cost. Strong harsh-condition adaptability and full-cycle reliability set a new benchmark for Dubai and the Middle East. Looking ahead, heavy equipment is evolving toward intelligence and green development. HSBRIDGE will keep empowering global bridge construction with innovative technology. This supports partners in achieving green, sustainable growth.
