Segmental Launching Gantry

Name: Segmental Launching Gantry
Brand: HSCRANE
Availability: InStock

Engineered for the rapid and precise in-situ assembly of precast concrete segments for long-span bridge construction.

150t - 250t Capacity

1,100 - 3,000T Suspension

50m - 80m Span

High Precision Alignment

Request a Quote WhatsApp

Fast global delivery · 24/7 engineering support · CE & ISO certified

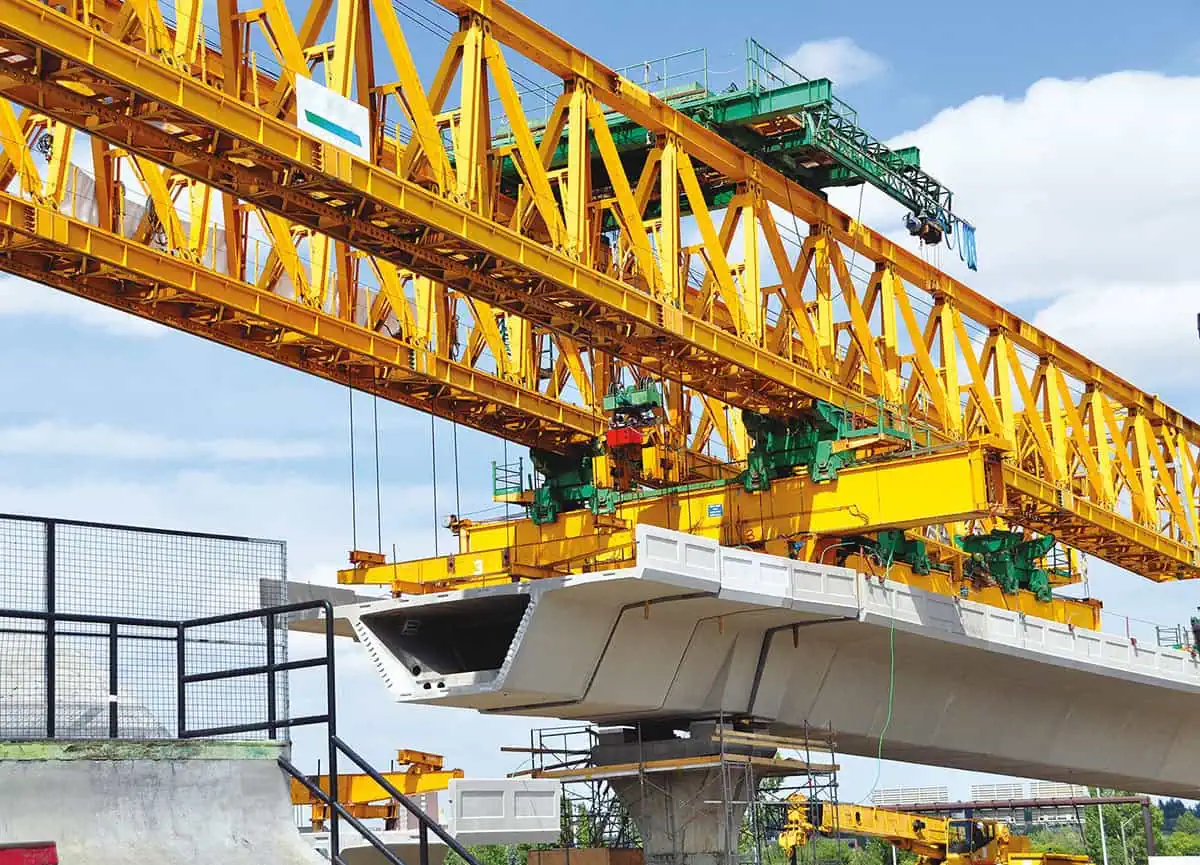

What is a Segmental Launching Gantry?

A segmental launching gantry is a specialized overhead bridge erection machine engineered to assemble precast concrete segments. Viaduct contractors utilize this massive structural framework to hoist, align, and join individual match-cast blocks sequentially. It guarantees rapid span-by-span construction and structural stability across complex elevated transit projects globally.

Equipment Overview

A robust segmental launching gantry accelerates complex viaduct construction projects drastically. Engineers deploy this heavy precast segmental bridge erector across challenging elevated transit networks safely. Operators lift massive match-cast concrete blocks precisely using our advanced segmental box girder launching machine. You achieve perfect structural alignment effortlessly during complex span-by-span viaduct installations. This efficient span-by-span segmental gantry reduces total bridge completion time significantly. Project managers operate the robust balanced cantilever erection equipment safely over deep mountain valleys. Our match-cast segment lifter guarantees exact epoxy joint matching during continuous heavy lifting operations.

Technical Specifications

Parameter	Engineering Specification
Maximum Span Length	50m – 80m
Maximum Segment Weight	100t – 200t per segment
Hoisting Speed (Full Load)	0 – 0.8 m/min
Longitudinal Launching Speed	0 – 0.5 m/min
Minimum Horizontal Curve Radius	≥ 300m
Maximum Longitudinal Gradient	Up to 5%
Spreader Micro-Adjustment	± 150mm (X, Y, Z)
Primary Power Generation	Diesel generator/power supply
Control System Architecture	Wireless remote control/cab
Advancing Method	Self-via

Application Scenarios

Urban Elevated Expressways

Contractors erect match-cast concrete segments rapidly above congested city streets without disrupting daily vehicular traffic.

Deep Valley Viaducts

Operators install massive bridge sections safely across challenging mountainous terrain using precise balanced cantilever methods.

Cross-Sea Bridge Projects

Engineers construct extensive coastal transit networks efficiently while battling continuous high-velocity ocean winds and corrosion.

Why Engineers Choose This Equipment

Precise Epoxy Joint Matching

The segmental launching gantry manipulates heavy concrete blocks flawlessly. Operators achieve millimeter-level alignment during epoxy application.

Flexible Span-by-Span Erection

This precast segmental bridge erector adjusts its main truss automatically. You cross variable pier distances efficiently.

Balanced Cantilever Capabilities

Engineers configure the machinery for symmetrical segment placement. The balanced cantilever erection equipment maintains structural equilibrium.

High-Speed Winch Synchronization

Proportional hydraulic valves synchronize independent lifting winches perfectly. The match-cast segment lifter prevents dangerous asymmetrical loading.

Dynamic Load Monitoring

Advanced PLC networks monitor structural mechanical stresses constantly. The system halts lifting operations instantly during overloads.

Superior Wind Resistance

Aerodynamic truss structures withstand severe canyon crosswinds safely. The span-by-span segmental gantry maintains absolute continuous stability.

Frequently Asked Questions

How does the gantry ensure millimeter-precision alignment for epoxy-glued joints?

The system utilizes independent hydraulic micro-adjustment cylinders on the lifting spreaders. Operators manipulate precast segments along three axes simultaneously to achieve exact shear key engagement and uniform epoxy compression.

Can the equipment navigate sharp horizontal curves during continuous span erection?

Yes. The articulated main truss and adjustable transverse sliding mechanisms accommodate tight horizontal curves. Engineers customize the support legs to navigate specific viaduct alignment radii safely and efficiently.

What mechanisms secure the unbalanced loads during balanced cantilever construction?

Heavy-duty hydraulic tie-downs and dynamic counterweights stabilize the main girders continuously. Real-time load cells monitor asymmetrical forces, ensuring the machinery maintains absolute equilibrium during sequential segment placement.

How do operators reposition the massive gantry between consecutive bridge piers?

Automated hydraulic launching cylinders advance the entire structural framework longitudinally. Motorized support rollers guide the main truss over the advanced pier brackets without requiring external crane assistance.

What safety limits govern lifting operations in high-wind coastal environments?

Integrated digital anemometers monitor wind velocities continuously. The central PLC automatically locks all hoisting winches and engages mechanical rail clamps when wind speeds exceed pre-programmed operational safety thresholds.

What is the typical lead time for delivery?

Standard lead time is 30-45 days depending on configuration and current production schedule. We provide a firm delivery date with every quotation.

Do you provide installation and commissioning support?

Yes. Our engineering team can travel to your project site to supervise installation, provide training for your crew, and commission the equipment. Remote video support is also available.

What warranty do you offer?

All our structural equipment comes with a 10-year structural warranty and 2-year comprehensive warranty covering manufacturing defects. Extended warranty options are available.

What shipping methods are available?

We ship worldwide via container (FCL/LCL), flat rack for oversized components, or RO-RO for self-propelled equipment. FOB, CIF, and DAP terms are available.

Do you offer custom engineering solutions?

Absolutely. Our engineering team works with your project specifications to customize span length, lifting capacity, and control systems to meet your exact bridge construction requirements.
