Bangkok Red Line North Metro Extension

Featured Project Completed

Bangkok Red Line North Metro Extension

Bangkok, Thailand

450T Max Capacity

FEM / DIN Standard

Start Your Project

The Challenge

Navigating tight horizontal curves in a dense urban environment with limited workspace and strict noise control.

Our Solution

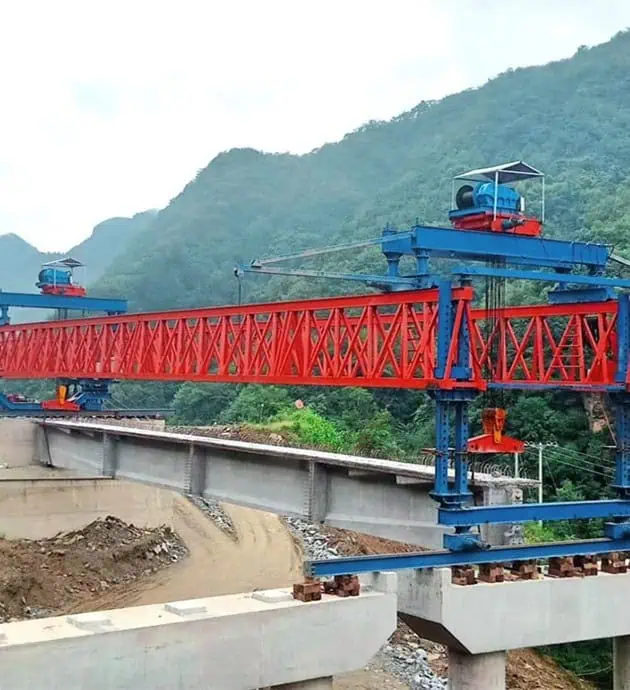

Custom-designed U-beam launcher with a small curve radius capability of 200m and hydraulic noise reduction systems.

Project Specifications

Specification	Value
Line Length	26.4 km
Max Span	40 m
U-Beams Installed	1,120
Curve Radius	Min 200 m

Key Results

Curve radius navigation: Min 200m

Installation precision: ±3mm

100% urban environmental compliance
