Conquering Complex Terrains: Erection on 5% Gradients and Tight 200m Curves

In an ideal world, all highway viaducts and railway bridges would be perfectly straight and entirely flat. In reality, modern infrastructure projects—whether cutting through rugged mountainous regions or weaving through densely populated urban centers—demand extreme adaptability.

For EPC contractors, encountering a steep gradient bridge (up to 5% longitudinal slope) or a small curve radius viaduct (as tight as 200m) presents a massive logistical and engineering nightmare. Standard lifting equipment simply cannot operate safely under these geometric constraints.

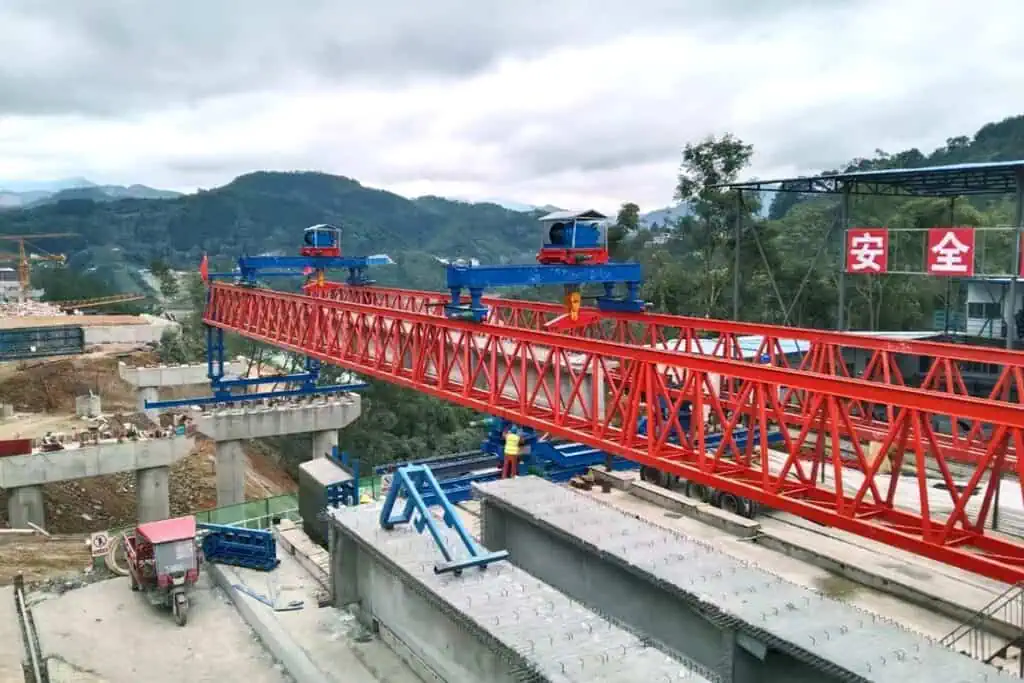

In this technical insight, we explore the advanced engineering features that allow our Highway Beam Launchers and Segmental Launching Gantries to defy gravity and geometry, ensuring safe and precise erection in the most punishing terrains.

The 5% Steep Gradient Challenge: Defying Gravity

When erecting a 200t concrete T-beam or box girder on a 5% longitudinal slope, the laws of physics work against you. The entire weight of the Launching Gantry, combined with the suspended concrete girder, creates an immense downhill sliding force.

Using standard equipment on such inclines risks catastrophic trolley slippage, structural buckling, or complete loss of control during the launching phase.

The Engineering Solution:

To conquer steep gradient bridges, our Highway Beam Launchers are equipped with a specialized Self-Balancing and Anti-Slip System:

• Self-Balancing Hydraulic Support Legs: The front, middle, and rear support legs feature high-stroke hydraulic cylinders. These cylinders automatically adjust their height to compensate for the slope of the bridge piers. This ensures that the main steel truss remains perfectly horizontal, providing a level runway for the lifting trolley.
• Anti-Slip Winch Trolley: The hoisting trolley (which carries the girder along the truss) is fitted with dual-redundant mechanical braking systems and specialized anti-slip drive wheels. Even on a 5% grade, the trolley can stop precisely without drifting.
• Longitudinal Restraint Systems: During the critical “machine-passing” (launching to the next pier) phase, heavy-duty mechanical locking pins and hydraulic grippers firmly anchor the gantry to the pier cap, neutralizing any downhill momentum.

The 200m Tight Curve Challenge: Navigating the Bend

Urban rail transit systems and mountain highways frequently require sharp turns to navigate around existing buildings or natural obstacles. A small curve radius viaduct (e.g., Min. 200m) is exceptionally difficult for a 50-meter-long, rigid steel gantry to traverse. If the machine cannot articulate, it will clash with the piers or derail from its support tracks.

The Engineering Solution:

Our equipment utilizes a highly flexible, multi-axis steering methodology to “snake” its way around tight curves:

• Articulated Main Truss Design: Depending on the project requirements, the main longitudinal girders can be designed with articulated joints. This allows the rigid steel frame to slightly bend, matching the curvature of the bridge alignment.
• Dynamic Transverse Moving Mechanisms: The support legs of the beam launcher sit on motorized transverse (lateral) sliding rails located on the pier caps. As the gantry launches forward, the front and rear legs continuously shift left or right, maintaining the machine’s center of gravity precisely over the curved bridge centerline.
• Adjustable Lifting Spreader: The lifting beam (spreader) can rotate horizontally, allowing the operator to align the precast concrete beam perfectly with the curved bearing pads on the pier before lowering it into place.

Segmental Launching for Extreme Urban Curves

In highly congested urban environments where transporting a full-span 40m precast beam is impossible, Segmental Launching is the ultimate solution.

Instead of full-span beams, the bridge is constructed using smaller, match-cast concrete segments (typically weighing 50t to 100t each). Our Segmental Launching Gantries (Overhead or Under-slung) are uniquely suited for tight curves. Because the bridge is built piece-by-piece in the air, the gantry can adjust the angle of each individual segment dynamically. By applying epoxy resin and post-tensioning the segments together, the gantry effortlessly forms a seamlessly curved viaduct that matches the exact geometric requirements of the city plan.

Conclusion: Purpose-Built for the Impossible

When bidding on complex infrastructure projects involving mountainous terrains or tight urban corridors, the capability of your erection equipment dictates your success.

Our Highway Beam Launchers and Segmental Launching Gantries are not off-the-shelf products. They are custom-engineered solutions featuring self-balancing hydraulics and dynamic transverse steering, specifically designed to turn “impossible” terrains into highly efficient construction zones.

Mark Meng

Bridge Construction Equipment Specialist

Bridge construction equipment specialist with focus on launching gantry structural design, hydraulic synchronization systems, and on-site erection methodology. Experienced in technical requirement analysis for span-by-span and full-span launching projects across varying terrains and load capacities.
