Highway Beam Transporter

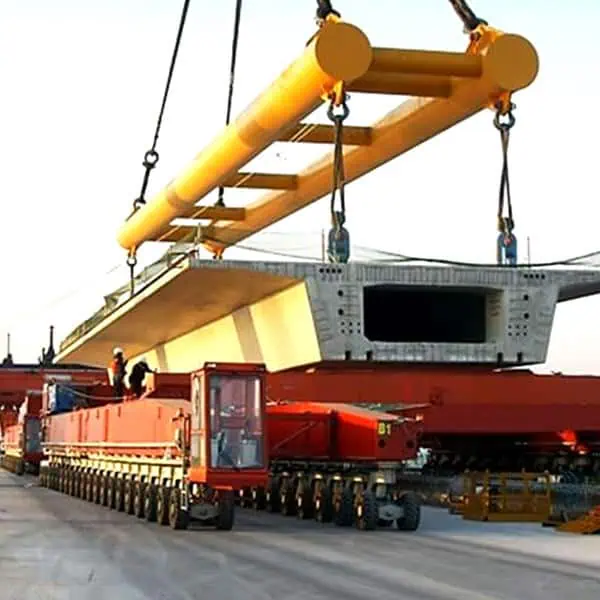

A robust and cost-effective transport solution designed for the safe and efficient hauling of precast concrete T-beams and I-beams across standard highway and bridge construction sites.
80t - 300t
Payload Capacity
0 - 15 km/h
Speed
≤ 5%
Max. Gradeability
Mechanical / Rigid
Suspension Type
Fast global delivery · 24/7 engineering support · CE & ISO certified
What is a Highway Beam Transporter?
A highway beam transporter is a heavy-duty multi-axle industrial vehicle engineered for bridge construction logistics. Expressway contractors utilize this specialized machinery to transport massive precast concrete girders from casting yards directly to bridge launching gantries. It guarantees exceptional mobility and structural stability across rugged terrain.
Equipment Overview
A heavy-duty highway beam transporter accelerates massive expressway viaduct construction logistics significantly. Engineers utilize this advanced precast concrete girder trailer to move massive bridge segments. Operators drive the highway bridge beam carrier safely across rugged fabrication yard terrain. The heavy duty girder transporter navigates steep longitudinal access ramps with continuous traction. Your logistics team handles 200-ton concrete structures efficiently using this precast beam transport vehicle. We manufacture the concrete viaduct transport trailer to ensure absolute structural stability continuously. Contractors maximize daily production rates reliably relying on our specialized bridge transport machinery globally.
Technical Specifications
| Parameter | Engineering Specification |
|---|---|
| Rated Payload Capacity | 80t – 300t |
| Applicable Girder Length | 20m – 40m (Standard Highway Box/T-Beams) |
| Travel Speed (Unloaded) | 0 – 15 km/h |
| Travel Speed (Full Load) | 0 – 5 km/h |
| Maximum Longitudinal Gradient | Up to 8% (Under Full Load) |
| Axle Configuration | Multi-Axle Independent Hydraulic Suspension |
| Suspension Lifting Stroke | ± 300 mm |
| Steering Geometry | All-Wheel Hydraulic Steering (Ackermann Principle) |
| Primary Power Generation | Weichai / Cummins Heavy-Duty Diesel Engine |
| Braking System | Dual-Line Pneumatic Drum Brakes with Engine Retarder |
Application Scenarios
Expansive Casting Yards
Workers transport massive freshly cured girders from pouring stations directly to heavy storage pedestals efficiently.
Highway Viaduct Construction
Logistics crews feed heavy concrete segments continuously to launching gantries along active expressway alignments.
Bridge Deck Replacement
Operators move colossal precast structures safely between temporary staging areas and final pier placement zones.
Why Engineers Choose This Equipment
Feature
Engineering Benefit
Omnidirectional Steering Maneuverability
Independent hydraulic wheel bogies execute complex transverse movements seamlessly. Operators navigate tight casting yards effortlessly.
Active Hydraulic Suspension
The highway beam transporter distributes massive payloads evenly. This prevents severe ground subsidence during heavy transport.
Synchronous Dual-Vehicle Operation
Intelligent PLC networks synchronize the front and rear tractor units flawlessly. You transport 40-meter girders perfectly.
Integrated Braking Redundancy
Dual-circuit pneumatic braking systems secure the precast concrete girder trailer instantly during emergency downhill stops.
High-Gradient Traction Control
Powerful diesel engines drive multi-axle mechanical transmissions directly. The highway bridge beam carrier climbs steep access ramps smoothly.
Real-Time Dynamic Monitoring
Wireless sensors track structural mechanical stresses continuously. The central controller alerts operators immediately during sudden overloads.
Frequently Asked Questions
How does the suspension system handle transition slopes between the casting yard and highway deck?
Active hydraulic cylinders provide a dynamic suspension stroke of ±300mm. This continuous vertical compensation maintains absolute structural leveling while the machine climbs steep access ramps smoothly.
What synchronized control mechanisms manage the independent front and rear transport units?
The central PLC network communicates via secure wireless telemetry. It synchronizes engine throttle, steering angles, and braking pressure instantaneously, preventing dangerous structural twisting on 40-meter girders.
How do operators negotiate sharp horizontal curves on temporary construction access roads?
All independent wheel bogies feature heavy-duty hydraulic steering cylinders. Operators execute crab steering and tight cornering maneuvers to navigate restrictive temporary access road geometries flawlessly.
What redundant braking protocols secure massive payloads during steep highway descents?
The powertrain incorporates engine exhaust braking and hydraulic retarders. Dual-circuit pneumatic drum brakes engage automatically across all wheel groups upon detecting excessive downhill acceleration velocities.
How does the equipment distribute heavy ground bearing pressure to protect temporary access roads?
Engineers configure up to 16 independent axle lines featuring heavy-duty pneumatic tires. This massive multi-wheel footprint minimizes ground bearing pressure below 0.6 MPa effectively.
What is the typical lead time for delivery?
Standard lead time is 30-45 days depending on configuration and current production schedule. We provide a firm delivery date with every quotation.
Do you provide installation and commissioning support?
Yes. Our engineering team can travel to your project site to supervise installation, provide training for your crew, and commission the equipment. Remote video support is also available.
What warranty do you offer?
All our structural equipment comes with a 10-year structural warranty and 2-year comprehensive warranty covering manufacturing defects. Extended warranty options are available.
What shipping methods are available?
We ship worldwide via container (FCL/LCL), flat rack for oversized components, or RO-RO for self-propelled equipment. FOB, CIF, and DAP terms are available.
Do you offer custom engineering solutions?
Absolutely. Our engineering team works with your project specifications to customize span length, lifting capacity, and control systems to meet your exact bridge construction requirements.
